In environments where flammable gases or vapors are present, specialized devices and appliances are essential. These areas are designated as “Hazardous Locations,” necessitating the purchase of equipment that does not exacerbate the existing hazard upon installation.

NFPA 70, known as the National Electrical Code (NEC), is widely adopted across the United States. The NEC sets forth the minimum requirements for electrical installations and equipment in buildings, primarily to establish a foundation for ensuring safety and preventing fire hazards related to electricity. Numerous industries operate in areas with high concentrations of flammable gases, vapors, or liquids that are easily ignitable. Recognizing this risk, the NEC provides a classification system for equipment and installation methods to mitigate these hazards, maintaining protection against fires and explosions. This article examines the most severe hazard level, known as Class I, Division 1, which guides the selection and purchase of necessary equipment for these environments.

What is Class I, Division 1?

The NEC serves as the authoritative code for the installation of electrical equipment in buildings. Article 501 of the NEC outlines the requirements for hazardous locations, with Class I, Division 1 (Class I, Div. 1) representing the highest level of hazard. This classification pertains to areas where ignitable concentrations of flammable gases or vapors are present during normal operating conditions. Such conditions may arise due to repair or maintenance activities, leakage, or breakdowns that release combustible concentrations. In simpler terms, Class I, Div 1 locations are those where flammable gases or vapors are present continuously, intermittently, or frequently during normal operations.

Where are Class I, Division 1 products installed?

Understanding Class I Div 1 is crucial for identifying where explosion-proof products are necessary. These products are installed in environments such as:

• Oil and Gas Industry
• Volatile Chemical and Solvent Manufacturing
• Alcoholic Beverage Distilleries
• Spray Painting and Coating Booths
• Fuel Storage and Transfer
• Cleaning Businesses (using combustible liquid solvents)
• Battery Manufacturing

Who performs the hazard analysis?

You are not required to conduct a hazard analysis yourself. This responsibility falls to the authority having jurisdiction (AHJ), the owner, or the engineering firm engaged by the owner. It is essential to ensure that they specify UL-listed or certified equipment for Class I, Div 1 classified locations. At Brooks, our customer service representatives are ready to assist you in selecting the most appropriate products, leveraging our engineers’ expertise and supplier communications to provide the necessary technical support for your project.

What types of equipment require explosion-proofing?

In these locations, all electrical equipment, including motors, lighting fixtures, switches, and fire alarm initiating and indicating devices, as well as notification appliances, must be explosion-proof and classified as Class I, Division 1 (Class I, Div 1). This equipment is specifically designed for safe installation and operation in environments where flammable gases or vapors are present continuously, intermittently, or frequently, thereby ensuring the safety of both personnel and facilities.

What are the criteria for equipment that meets Class I, Division 1?

Equipment classified under Class I, Div 1 must meet two fundamental criteria:

• It must be robustly constructed to withstand rapid internal combustion.
• It must prevent internal flames from spreading to the surrounding flammable atmosphere.

To ensure that internal flames do not escape the equipment and ignite a flammable mixture of vapor and air, the equipment must:

• Possess sufficient strength to withstand internal pressures from rapid combustion without rupturing.
• Be designed to arrest flames at joints and openings.

These insights enable you to communicate effectively with customers who require specialized equipment for hazardous areas containing flammable gases and vapors. Your customers have already recognized the need for Class I, Div 1 equipment. They will likely depend on someone who can swiftly understand their requirements for specialized explosion-proof equipment and proper installation to ensure safety at their facilities.

When ordering explosion-proof notification appliances from Brooks for hazardous locations, ensure that you specify equipment that is listed and labeled as Class I, Division 1.

To stay compliant with the manufacturer’s manual and NFPA code 17A, maintenance must be performed on restaurant fire suppression systems every 6 months. Maintenance helps ensure the system is reliable and ready when needed. Here is an overview of the essential components that must be serviced semiannually by a qualified service technician.

Check with the Restaurant Manager

When you arrive, check in with the restaurant manager. You may know this person from previous service calls; if not, start by introducing yourself and the reason you are there. It is never good to downplay the importance of your time at the restaurant. Never say that you are there to replace the links and tag the system. Your customer will be invoiced for all the work you perform that will make the system code-compliant to help ensure it will work in the event of a fire.

Ask if there are any changes to the hazard (new appliances or different ones) and whether any problems have been identified during the monthly owner’s inspections. Inform the owner that you will be performing a very thorough examination, including a system test, including the operation of detection and releasing devices and pull stations. You will make any necessary repairs and replace parts that are deficient and ones that could cause system impairment. This quickly sets the tone for your service call and establishes the importance of the work you are about to perform.

Perform a Visual Examination

Verify the hazard has not changed, including replacements, modifications, or relocations of appliances. Make sure nozzles are directed at appliances and have their blowoff caps or foils. Check tamper indicators are not broken, and pull stations are unobstructed and undamaged, including checking for break rods on the pulls. Ensure pressure gauges are in operable range and the previous maintenance tag is in place. Lastly, check for obvious damage or conditions that would prevent the system’s normal operation.

All these items are the things that the manager should be checking monthly (NFPA 96, 8.2.2). But it is important that you also perform these checks during the semiannual maintenance.

Trip the System

The system needs to be operationally tested, but before tripping it, disable it with a locking pin and remove the actuation cartridge.

Once you are sure the system is not going to actuate, perform both automatic and manual functional tests as follows:

• Simulate automatic operation by cutting a test link or other releasing device.
• Simulate operation at pull station(s).

Note: The gas valve should close automatically during these tests and needs to be manually reset.

Once cables are slack, it is a good time to check for grease buildup in conduit and fittings. Also, check corner pulleys and tee pulleys for excessive grease. If they are binding or even sluggish, replace them. Any misalignment of piping (conduit) or fittings becomes obvious. Perform the troubleshooting, identify the problem, and make the fix. Never leave cables that are not moving freely. Replace cable, conduit, and fittings that are identified as problematic. Be confident of cable movement, as it is critical for safety.

Now that the simulation for the automatic system trip has been completed, you can begin the simulation for the manual pull station system trip. Once you are sure everything works normally, manually reset the gas valve so that cooking operations can resume.

G360ML

G360ML

G360ML

Install New Links

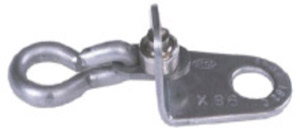

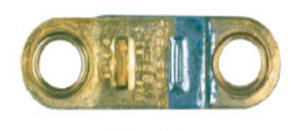

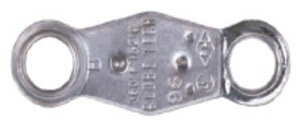

Make sure to replace all the fusible links in the system with new ones. The latest links must have the same temperature rating as those being replaced unless you suspect an issue. If you are replacing links while there is cable tension, make sure to use link pliers. Lock them in place, pop out the old link, and install the new replacement link. Here is a handy table to help with your analysis.

Fusible Link Temperature Ratings

Crimps, S-hooks, and link brackets are easy to change at this time. Check for bent brackets, corrosion, or other damage. Replace problematic brackets, crimps, S-hooks, and cable that can cause the system to malfunction.

Check System Cartridges and Hoses

Weigh and verify the actuation cartridge complies with the stamped weight. Whenever you change a nitrogen or carbon dioxide cartridge, record the replacement date in the space provided.

Examine hose assemblies for cracks or damage. Replace any hoses that show signs of problems.

Restore System to Operational Condition

Once the system has been examined, tested, and repaired, restore the system to operational condition by removing the locking pin and reinstalling the cartridge. Initial the service tag and record the year of manufacture and installation date of fusible links. Ensure you provide the manager with the maintenance report of your work with any safety recommendations.

Although the owner is ultimately responsible for inspecting, maintaining, testing, and charging the system, your expertise and attention to detail will help ensure that the system complies with the code and the manufacturer’s manual and ensures the safety of restaurant workers and patrons.

NFPA 14, Standard for the Installation of Standpipe and Hose Systems, outlines the essential requirements to ensure that systems function effectively, providing reliable water supplies during fire emergencies. The latest revision has reorganized the document for improved usability and alignment with NFPA 13, Standard for the Installation of Sprinkler Systems, recognizing their frequent concurrent use. This reorganization guides users through the document as if they are designing a standpipe system, beginning with water supply, moving through underground components, system elements, installation, design, plans, and calculations, and culminating with system acceptance testing provisions. While there are numerous critical technical updates to consider, the following highlights the key changes regarding hose connections.

Protecting Hose Connection Threads

In response to concerns regarding cap failures due to pressure accumulation behind non-rated caps, which could cause significant water damage, water hammer, or personal injury, the NFPA Technical Committee on Standpipes has introduced a new provision in the 2024 edition of the standard. This provision mandates that hose connection caps, which are not pressure-rated for use with an open hose valve, requires one or more openings with a total cross-sectional area of at least 1/8 inch in diameter. This requirement ensures that building owners can detect valve leaks and address necessary repairs promptly, while also preventing dangerous pressure buildup that could result in catastrophic failure or injury to firefighters or inspection, testing, and maintenance (ITM) personnel when removing a pressurized cap.

Locking Cap

Caps serve to protect the connection threads from potential damage. Without secure locking, brass caps can be easily removed by vandals and sold as scrap metal. The NFPA Standpipe Technical Committee discussed the issue of locking hose connection caps. Initially, the committee’s first draft report for the 2024 edition proposed a ban on locking caps, citing the risk of disabling a standpipe system if the cap cannot be removed during a fire. However, that stance was reversed in the second draft, acknowledging situations where lockable caps are necessary. According to the current standard, hose connections must feature external National Hose Standard (NHS) threads. In cases where they do not align with NFPA 1963, Standard for Fire Hose Connections, the Authority Having Jurisdiction (AHJ) will specify the appropriate hose threads.

Furthermore, lockable hose connection caps are permitted by the approving AHJ, with locking mechanisms for both hose connection caps and fire department connection (FDC) caps or plugs being keyed alike. The annex language clarifies that the fire department can efficiently operate with a single key or removal tool, thanks to the uniform locking mechanisms on both the lockable hose connection caps and the FDC caps or plugs. It is advisable to consult the AHJ if locking caps are desired, ensuring coordination with equipment manufacturers and all relevant parties requiring access.

The NFPA Technical Committee on Standpipes is currently reviewing language for the 2027 edition of the standard. Both topics have received public input for consideration at the First Draft Meeting May, 2025 in New Orleans, LA, which was attended by Brooks Equipment.

Conclusion

These measures enhance safety by safeguarding the hose connection threads from damage, prevent dangerous pressure buildup, allow locking caps that are sometimes necessary, while enabling the fire department to perform its duties.
