• Extinguishers: Periodically Checking Extinguisher Gauges is Critical for Safety

    A stored pressure fire extinguisher is the most common type of extinguisher. It has both the extinguishing agent and the pressurizing gas within the same container (cylinder). You can easily identify a stored pressure dry chemical extinguisher because it has a pressure gauge. A stored pressure extinguisher is ready to use if it contains agent and is sufficiently pressurized, as indicated by the gauge. Here is what needs to be checked to assure reliability of extinguisher gauges.

    Examine the Gauge
    Extinguisher gauges typically do not fail. An extinguisher gauge is replaced when damage is observed or upon discovery that the wrong gauge has been installed on an extinguisher. On an annual basis, as required by NFPA 10, 7.3.2.1, the extinguisher technician performs a thorough examination of every extinguisher in service, including the following extinguisher gauge checks:

    • Verifies the gauge cover is not cracked, broken, or “smoked” (sun, heat, or corrosive damage).
    • Verifies the gauge needle is in the operable range (green zone).
    • Verifies the rated operating pressure of the gauge corresponds with the nameplate pressure.
    • Verifies the agent type on the gauge face corresponds with the agent used in the extinguisher.
    • Verifies the gauge threads are compatible with the valve body material.

    Check the Charging Pressure
    The extinguisher gauge pressure must match the charging pressure. If the charging pressure for the extinguisher is 195 psi, then the gauge has “195” printed in the green area. You can find the extinguisher charging pressure on the extinguisher nameplate or in the service manual.

    Gauge

    Check the Agent Type Marking
    Extinguisher gauges are marked with the type of agent. A dry chemical gauge will say “USE WITH DRY CHEMICAL ONLY”. A gauge that has the marking “USE WITH WATER, AFFF OR LOADED STREAM ONLY” can be used with any of these three agents. Never install a gauge that does not match the extinguishing agent within the extinguisher.

    Verify Gauge Compatibility with Valve Body Material
    Check the gauge manufacturer’s code letter before installation to ensure valve body compatibility as follows:

    • Aluminum - A line above the gauge manufacturer’s code letter matches an aluminum valve body.
    • Brass - A line below the manufacturer’s code letter is a gauge for use with a brass valve body.
    • Aluminum or Brass – A universal gauge has lines above and below, or there is an absence of any line.

    Use the Right Tool!

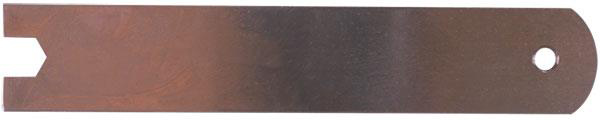

    The proper tool for removing and installing extinguisher gauges is the Brooks Gauge Wrench (P/N GWRENCH). It is specifically designed and if used correctly, it will not damage the gauge and the extinguisher valve.

    An extinguisher gauge is a critical component of a stored pressure extinguisher. Understanding what needs to be checked offers a reasonable assurance that the gauge will provide accurate readings and that the extinguisher will be ready for use during a fire emergency.
